Headlight Testers
red line







WEAVER HEADLIGHT TESTER BROCHURE FROM 1981
Weaver Brochure Headlight Tester 1981
Weaver Brochure Headlight Tester1981
This 1981  Sales Brochure  detailed the features of the Weaver Headlight Tester Models









WEAVER HEADLIGHT TESTER BROCHURE FROM 1950
Weaver Headlight Tester AD from 1950
The Weaver WX-17 and the WX-18 Headlight Testers are shown  still available in 1950, even though the WX-45, WX-46, WX-50 and the WX-51 Models were the successor models







WEAVER   MANUAL  FROM 1940
Weavers First Version of the RayoScope Headlight Tester

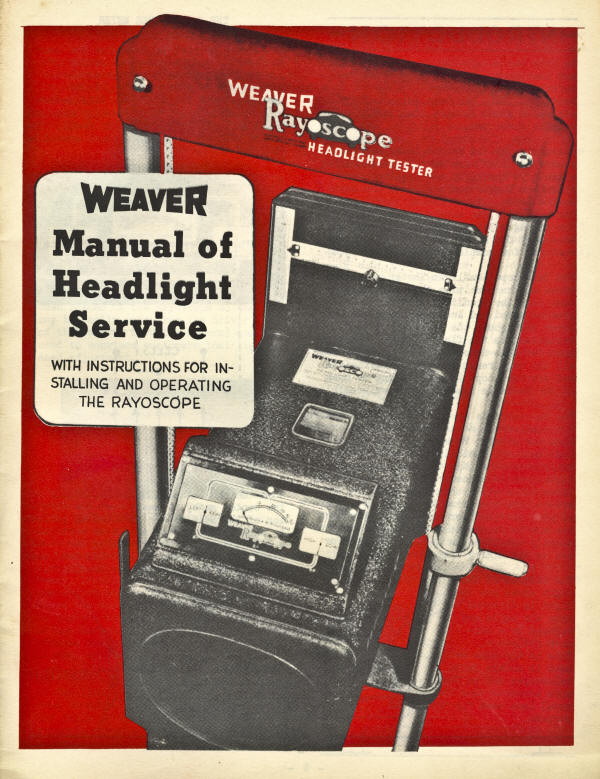

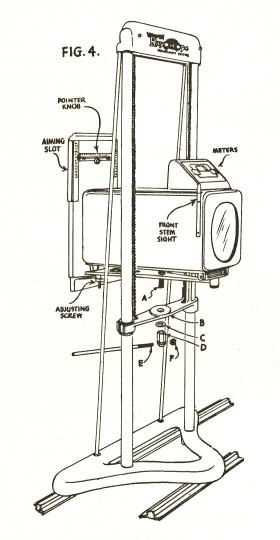

This manual featured a picture of the very first Weaver Ray O Scope Headlight Tester.  This model was later redesigned to have a vertical profile







WEAVER SAFETY LANE EQUIPMENT  AD FROM 1939
Weaver AD from 1939 Featuring WX-17 Headlight Tester and WY-25 Brake Tester
Weaver Catalogue Advertisement  from August 1939 Featuring the Weaver WX-17 Headlight Tester and the Weaver WY-25 Brake Tester  The Term "Safety Lane" was Trademarked by Weaver.







WEAVER SAFETY LANE EQUIPMENT  BROCHURE FROM 1932
Weaver headlight and Alignment Tester Flyer from 1933
The Weaver WX-10  Headlight Tester is featured in this brochure page from 1933.  This was Weavers very First Headlight Tester









1st Weaver  Headlight Tester Model WX-10
Weaver 1930 Model Headlight Tester                       First Weaver Headlight Tester from 1930

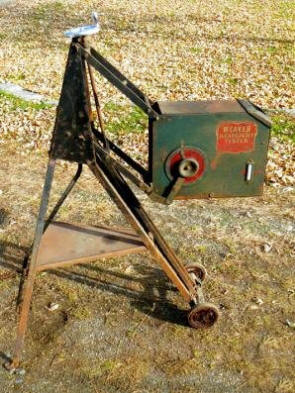

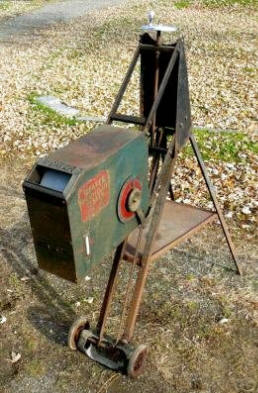

This was the First Headlight Tester Advertised by Weaver.  It was first featured in a 1930 AD







Weaver  WX-17  Model Headlight Tester
Weaver Headlight tester from 1940 era         Early 1940's Model Weaver Headlight Tester

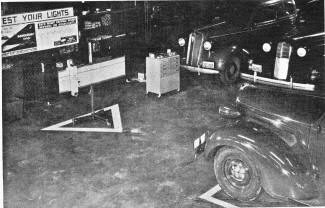

This Weaver WX-17  "Electric Eye" Headlight Tester was produced first in 1937.   It was used up to the 1950's .   The WX-18 Model used a Track System.

Weaver Electric Eye WX-17 Headlight Tester          Weaver Electric Eye WX-17 Headlight Tester
 The Weaver Electric Eye Headlight Tester was one of the First Models to use a Meter driven by a Photo Cell.      Manuals for this Model are  Available- Click Here









First  Weaver  Ray O Scope Model
Weaver Rayoscope Headlight Tester in 1940           Weaver Ray O Scope Headlight Tester from 1940
The Weaver Rayoscope Headlight Tester was first introduced in 1939, along with the advent of sealed beam headlights on cars.  There were comparatively few of these models manufactured and the horizontal profile of the body was changed to the familar vertical profile of the redesigned WX-50-51 Rayoscope  Models








Weaver  Photoscope & Rayoscope
Headlight Testers
(Discontinued)
Weaver Headlight Tester Rayosope     Weaver Photoscope Headlight Tester
 WX-51 Rayoscope Headlight Tester                         WX-45 Photoscope Headlight Tester

Weaver Photoscope Headlight Tester   Weaver Rayoscope Headlight Tester
WX-46 Photoscope Track Model   WX-50 Photoscope Portable Model

Weaver Rayoscope Headlight Tester Photoscope had One Indicator Meter

Rayoscope had Three Indicator Meters.



WX-45A Photoscope was portable

WX-46A Photoscope used a floor mounted track

WX-50A Rayoscope was portable

WX-51A Rayoscope used a floor mounted track
Early Rayoscope Model Manuals Available for these Models - Click Here

The Weaver Rayoscope and the Weaver Photoscope Headlight Testers were produced from the 1950's until they were discontinued in the early 1990's.







Documentation Available            Documentation is available for this Product


Manuals Available for these Models - Click Here


Patent Office Data and Drawings -  WX-17 Electric  Eye 1938

Patent Office Data and Drawings - 1st Rayoscope 1940

Patent Office Data and Drawings -  Photoscope 1952
